Dymension LCR-525 MAX

Name: Dymension LCR-525 MAX
SKU: DW-80 PRO 8.0"
Availability: InStock

₹42,000.00

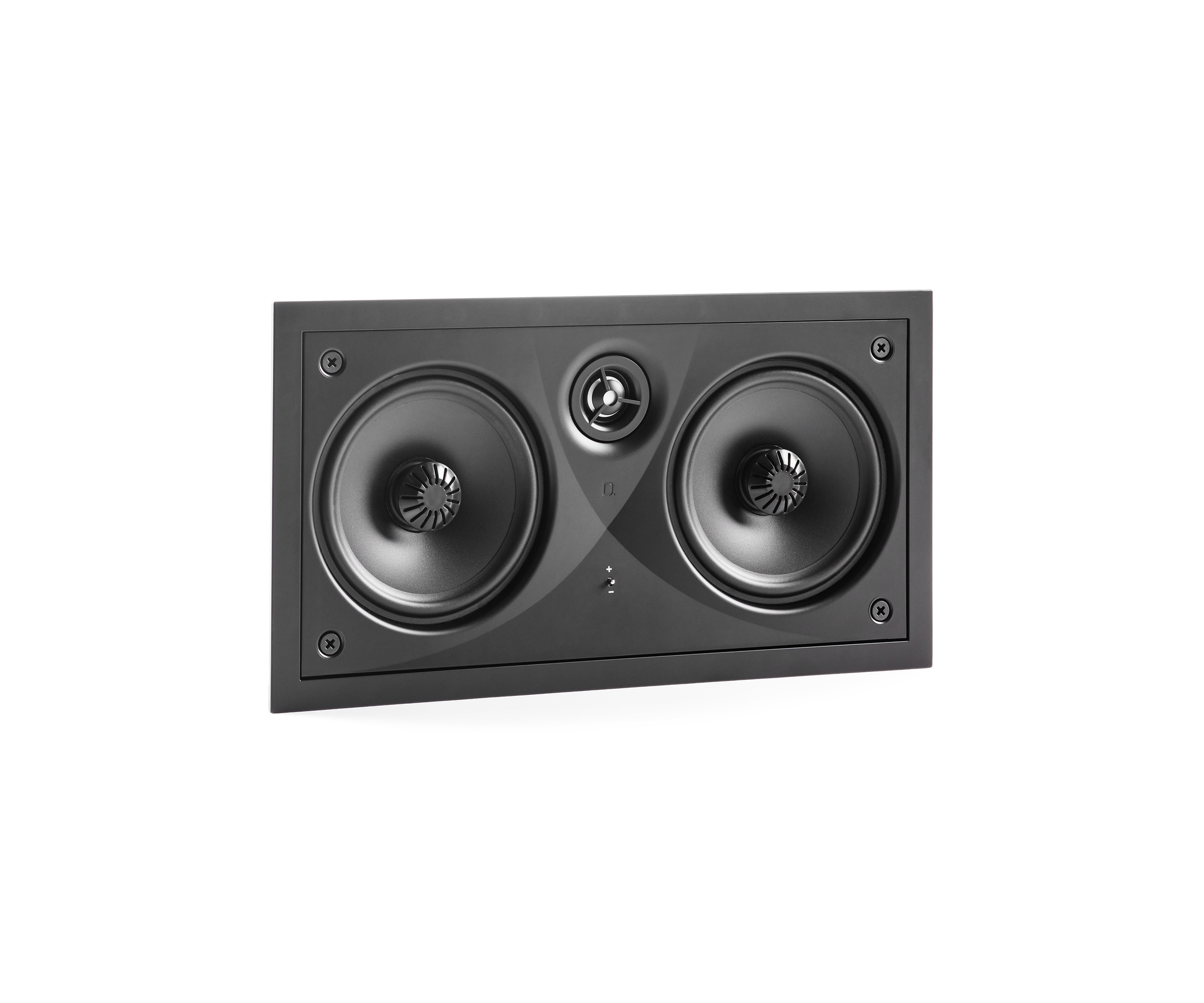

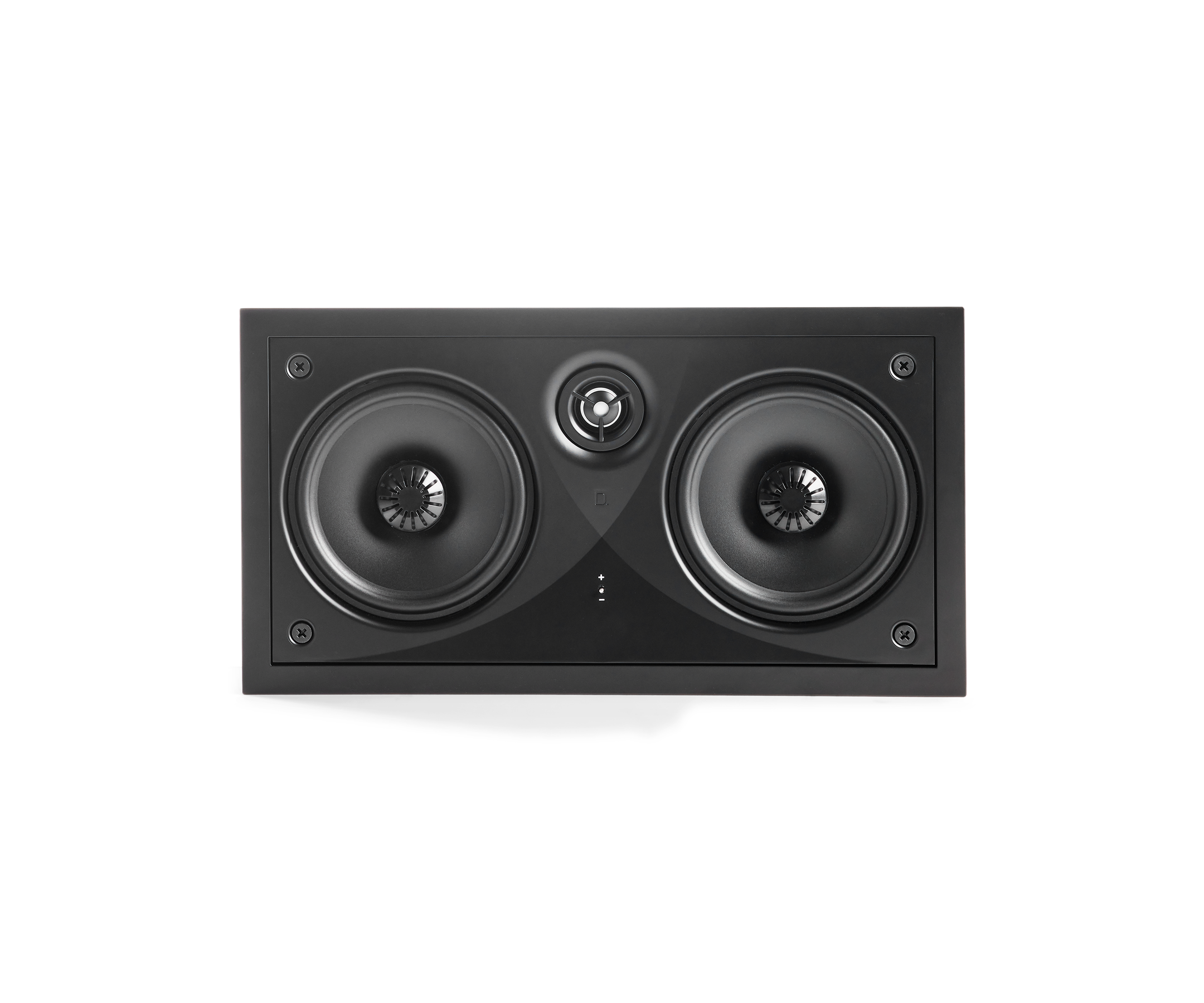

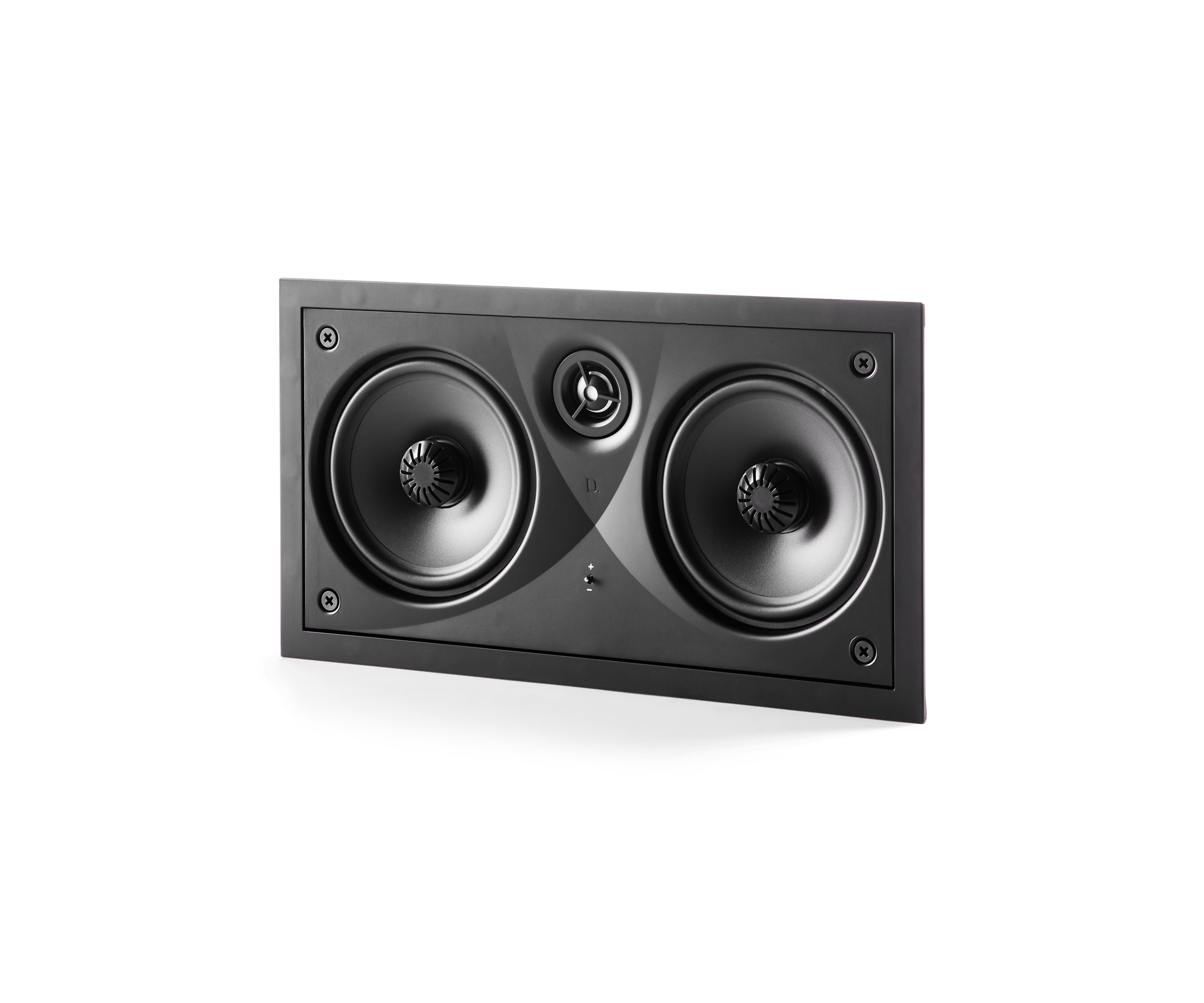

Dymension LCR-525 MAX – Premium In-Wall LCR Speaker with Dual 5.25″ Woofers

Details & Specifications

Product Dimensions (W x H x D)*
*Horizontal Orientation : 15.69 x 8.56 x 3.94 in (398.4 x 217.4 x 100.3 mm)
Cut- Out Dimensions (W x H) : 14.46 x 7.33 in (367.2 x 186.2 mm)
Mounting Depth : 3.66 in (92.9 mm)
Weight : 6.37 lbs (2.89 kg)
Color : White Paintable Grille

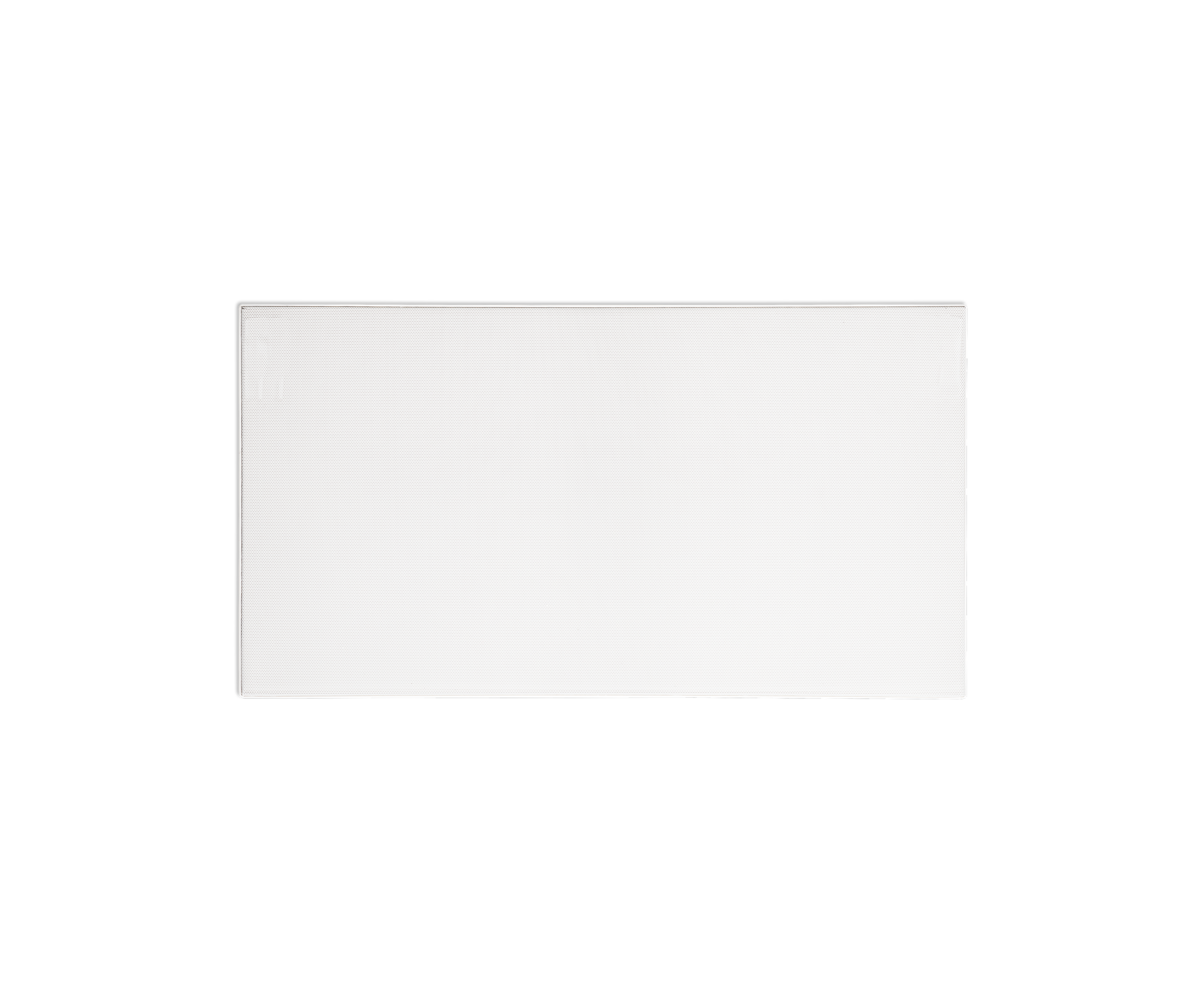

Grille material : Micro-Perforated Magnetic Grille
Tweeter : 1 in Pivoting Aluminum Oxide Dome Tweeter
Midrange/Midbass : (2) 5.25 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™

SKU: DW-80 PRO 8.0" Categories: Definitive technology, In-Wall Speakers, SPEAKERS

Dymension LCR-525 MAX Premium In-Wall LCR Speaker with Dual 5.25″ Woofers

The Dymension CI™ MAX Series, Definitive Technology’s highest-performance installed speaker line, leverages our most advanced acoustic innovations in discreet, adjustable in-ceiling and in-wall speakers that provide breathtaking sound.

Dual 5.25″ Mineral-Filled BDSS Woofers with Linear Response Waveguide™
1″ Pivoting Aluminum Oxide Dome Tweeter
Toolless Installation
Flush, Border-Free Design
Tweeter Attenuation Switch

Dimensions (H x D)	6.25 × 1.87 in. (159 × 48 mm)
Adjustable	41.8 ~ 45.2 in. (1062 ~ 1148 mm)
Symmetrically adjustable extensions	3.42 in. (87 mm)
Grille material	Micro-perforated powder-coated steel
Tweeter	(1) 1 in. aluminum oxide dome
Midrange	(2) 3.5 in. XTDD aluminum dome
Woofer	(6) 3.5 in. XTDD aluminum dome
Number of channels	1
Frequency response	100 Hz–25 kHz (-10dB) 120 Hz–20 kHz (-3dB)
Nominal impedance	4Ω (8Ω compatible)
Sensitivity	88dB (2.83V/1m)
Recommended amplifier power	25-150W
IP rating (Ingress Protection)	IP66
Included accessories	(1) Wall-mount bracket
