Dymension DW MAX SUR

Name: Dymension DW MAX SUR
SKU: DW MAX SUR
Availability: InStock

₹53,000.00

Dymension DW MAX SUR

Premium In-Wall Bipolar Surround Speaker with Dual Tweeters and Dual 5.25″ Woofer

Details & Specifications

Product Dimensions (W x H x D) : 9.50 x 18.64 x 3.95 in (241.4 x 473.4 x 100.3 mm)
Cut- Out Dimensions (W x H) : 8.28 × 17.37 in (210.2 × 441.2 mm)
Mounting Depth : 3.66 in (92.9 mm)
Weight : 7.17 lbs (3.25 kg)
Color : White Paintable Grille
Grille material : Micro-Perforated Magnetic Grille
Tweeter : (2) 1 in Aluminum Oxide Dome Tweeter
Midrange/Midbass : (2) 5.25 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™

SKU: DW MAX SUR Categories: Definitive technology, In-Wall Speakers, SPEAKERS

Dymension DW MAX SUR

Premium In-Wall Bipolar Surround Speaker with Dual Tweeters and Dual 5.25″ Woofer

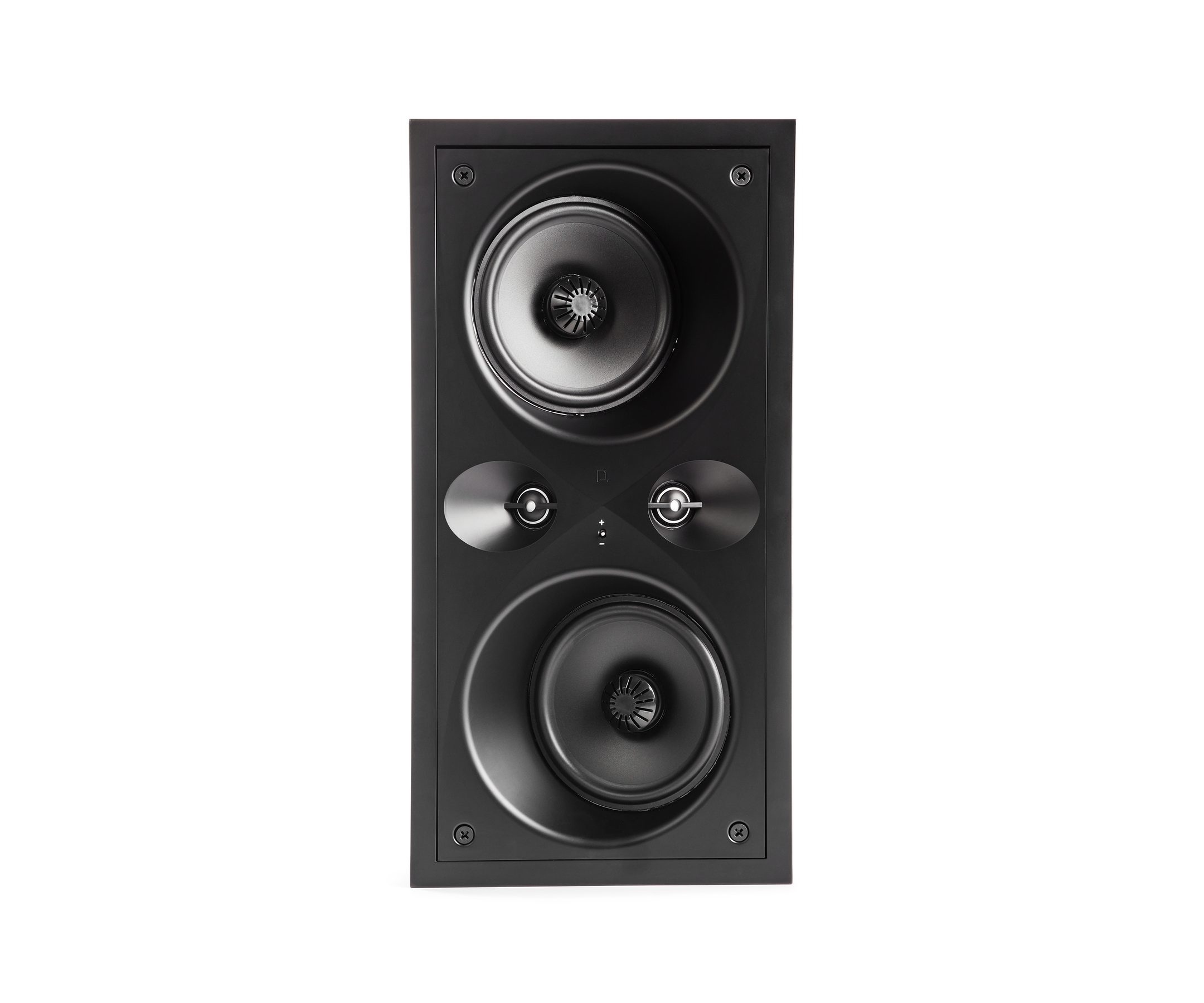

The Dymension CI™ DW-MAX SUR in-wall bipolar surround speaker delivers expansive sound while vanishing into any room, thanks to a bipolar array and discreet aesthetics.

Dual 5.25″ Mineral-Filled BDSS Woofers with Linear Response Waveguide™
Dual 1″ Aluminum Oxide Dome Tweeters
Toolless Installation
Flush, Border-Free Design
Tweeter Attenuation Switch

Dimensions (H x D)	6.25 × 1.87 in. (159 × 48 mm)
Adjustable	41.8 ~ 45.2 in. (1062 ~ 1148 mm)
Symmetrically adjustable extensions	3.42 in. (87 mm)
Grille material	Micro-perforated powder-coated steel
Tweeter	(1) 1 in. aluminum oxide dome
Midrange	(2) 3.5 in. XTDD aluminum dome
Woofer	(6) 3.5 in. XTDD aluminum dome
Number of channels	1
Frequency response	100 Hz–25 kHz (-10dB) 120 Hz–20 kHz (-3dB)
Nominal impedance	4Ω (8Ω compatible)
Sensitivity	88dB (2.83V/1m)
Recommended amplifier power	25-150W
IP rating (Ingress Protection)	IP66
Included accessories	(1) Wall-mount bracket
